GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
Technical Parameters:
|
Machine model |
G1WY-100 |
G1WY-300 |
G1WY-500 |
G1WY-1000 |
G1WY-2500 |
G1WY-5000 |
|
Filling speed |
5-20b/min(take water for example) |
|||||
|
Filling range |
10-100ml |
30-300ml |
50-500ml |
100-1000ml |
250-2500ml |
500-5000ml |
|
Air pressure |
0.4~0.6mpa |
|||||
|
Filling error |
≤±1% |
|||||
|
Machine size |
806(L) × 180(W) ×690(H)mm |
880(L) ×230(W) ×665(H)mm |
880(L) × 230(W) ×665(H)mm |
1065 (L) ×230(W) ×665(H)mm |
1250(L) ×400(W) ×300(H)mm |
1390(L) ×420(W) ×380(H)6mm |
|
Machine weight |
30 Kg |
35Kg |
40Kg |
45Kg |
60 Kg |
80 Kg |
Machine can be customized according to customer,s requirement

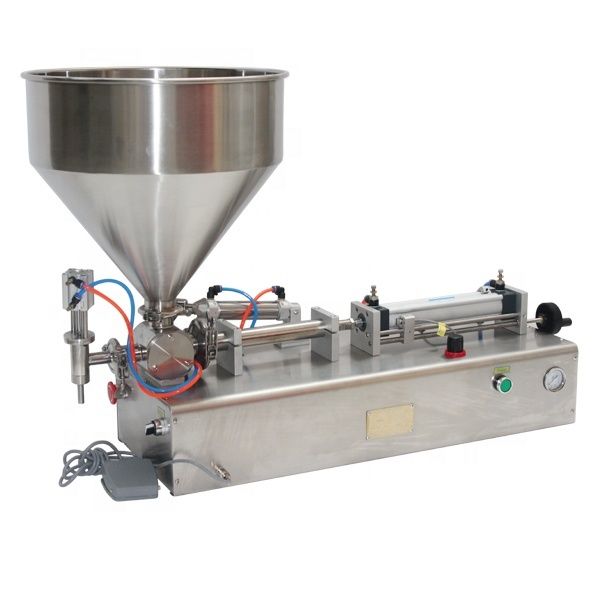

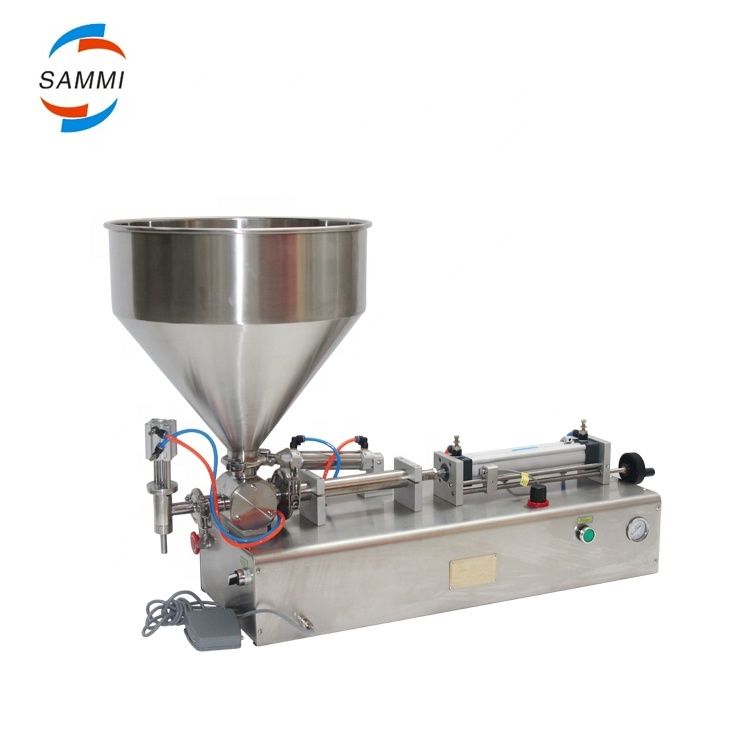

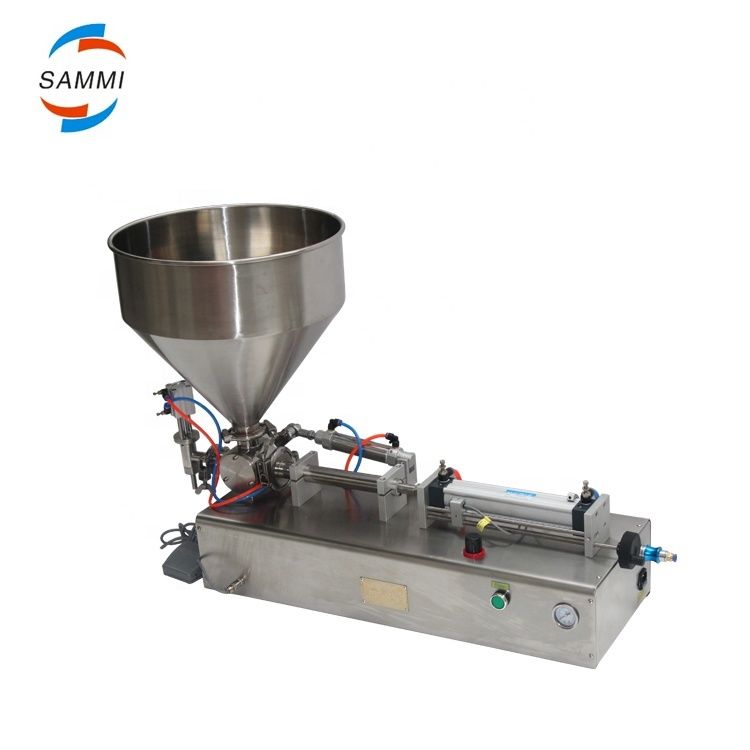

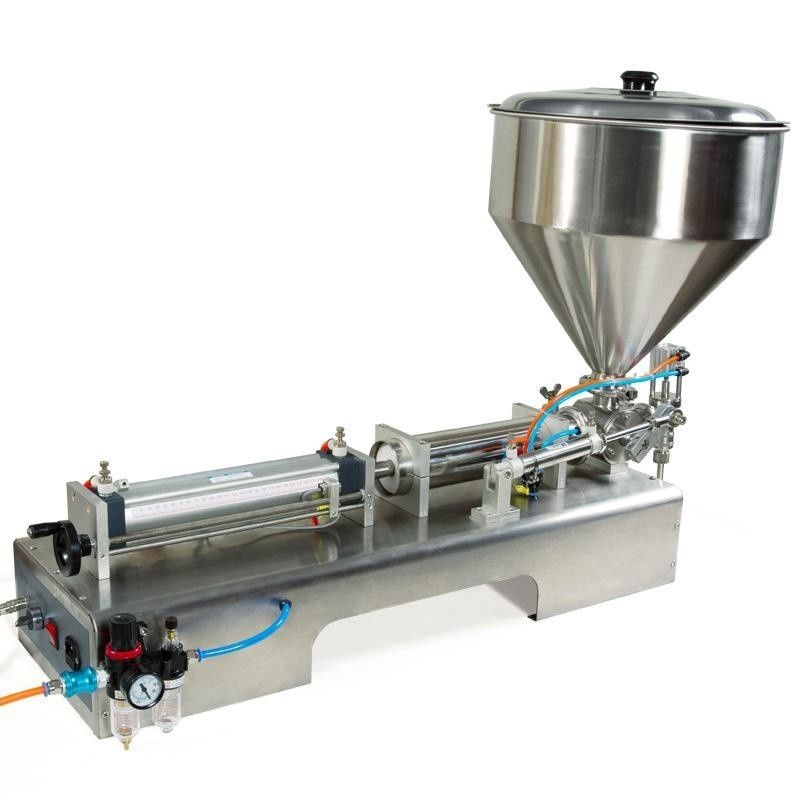

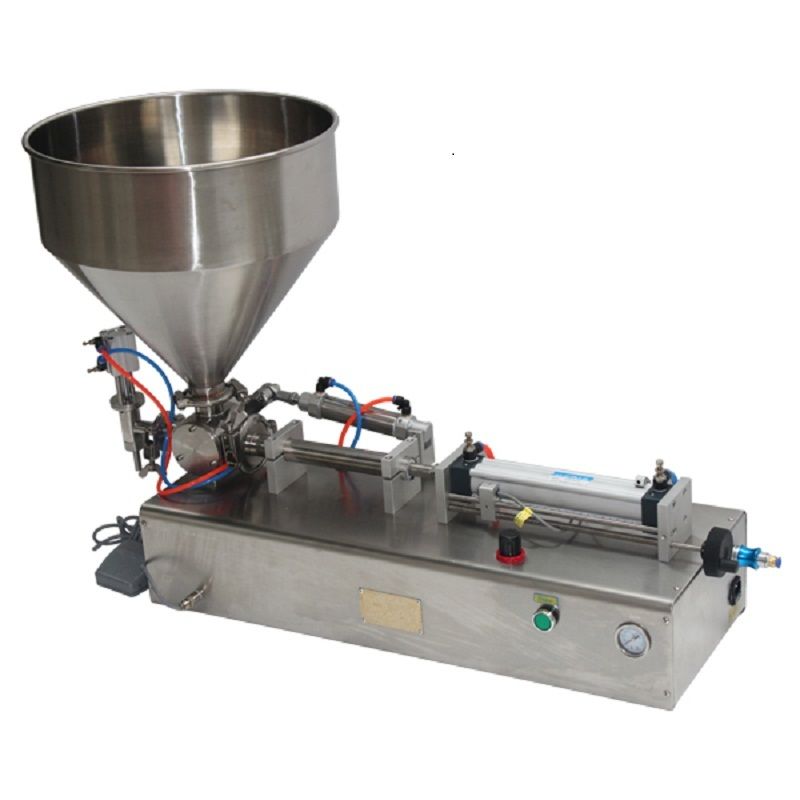

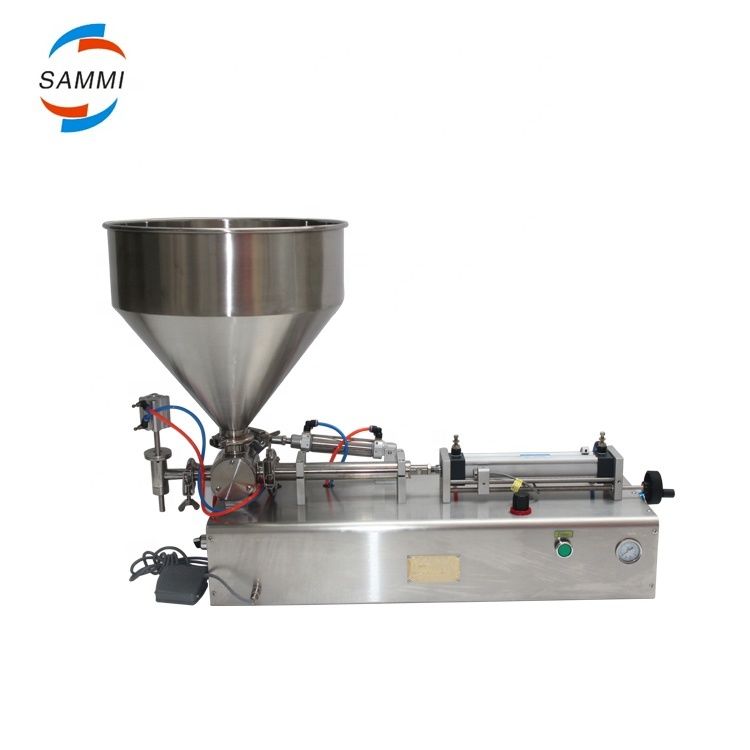

Pictures of cream filling machine
