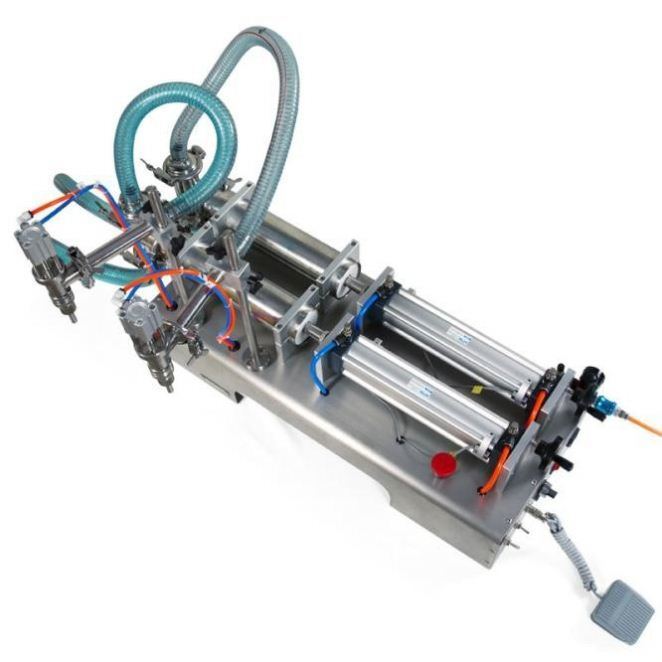

High Filling Accuracy Double heads Liquid Filling Machine
Features:
This machine adopts full pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.
1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device..
.
Application:
Widely used by industries in the Food & Beverage, Cosmetics, Personal
Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.
.And it is an ideal device for low viscosity fluid filling.
Principle
GFC series of semi-automatic filling machine piston filler. It has Two Heads and Two Valves,
Each Head matchs own Valves, it can work Separately, makes the filling capacity very precisely.

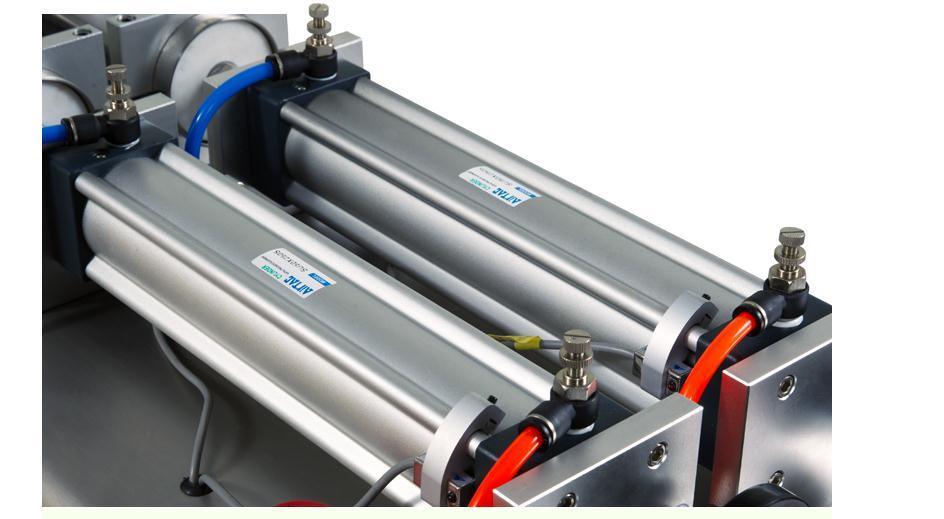

Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.
Technical Parameters:
| Machine model | GFC-W-2Y-100 | GFC-W-2Y-300 | GFC-W-2Y-500 | GFC-W-2Y-1000 |
| Filling Range (ml) | 10-130 | 20-300 | 20-500 | 30-1000 |
| Filling Accuracy (FS) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Production Capacity (cycle/min) | 1-25 | 1-25 | 1-25 | 1-25 |
| Air Pressure (Mpa) | 0.4-0.9 | 0.4-0.9 | 0.4-0.9 | 0.4-0.9 |
| Size of Package (mm) | 850X280X350 | 850X280X350 | 850X280X350 | 950X280X350 |
| Net Weight (kg) | 50 | 55 | 60 | 65 |
Machine can offer customized according to customer request
