Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500

Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500

pneumatic liquid filler machine,double nozzles filling machine,shampoo oil chemical filler

double nozzles filling machine

shampoo oil chemical filler

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
机器产能:
500 瓶每小时 ، 1000 瓶每小时
应用:
食品 ، 饮料 ، 化学品
包装类型:
رقاقات الثلج
包装材料:
木质
自动化程度:
半自动
动力类型:
جديد
الضغط الكهربائي:
220 فولت/110 فولت
原产 地:
غوانغدونغ، الصين
品牌:
سامي
尺寸 (长 × 宽 × 高):
96 * 45 * 38mm
هذا هو الحال:
1年
核心卖点:
高精度
填充物料:
水 ، الزيت ، عصير
灌装精度:
1g
机械测试报告:
可 提供
视频出厂验货:
可 提供
核心组件:
电机 ، 其他
类型:
便宜的烹饪油灌装机 ، 罐装机
材料:
不锈钢
填充范围:
50-500 مل
充填速度:
10-35n/min (للمياه على سبيل المثال)
填充错误:
± 1٪
应用 程序:
医疗
本地服务位置:
营销类型:
2020 年新产品
状态:
جديد
هذا هو الحال:
维修店 ، 家用 ، 食品店 ، 餐饮店
展示厅地点 (在海外哪些国家有样品间):
لا شيء
核心组件质保期:
1年
重量:
40 كجم
إبراز:

pneumatic liquid filler machine,double nozzles filling machine,shampoo oil chemical filler

,

double nozzles filling machine

,

shampoo oil chemical filler

شروط الدفع والشحن
الحد الأدنى لكمية
1 مجموعة
الأسعار
$360-450 / set
وصف المنتج

Double nozzles liquid filling machine

Product Description

Features:

1.Reasonable design,compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device





Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal.

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.

It is an ideal device for low viscosity fluid filling.







Principle:

G1WY-2Y series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
 materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.


1.Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.


2.Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.


3.Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.





Technical Parameters:

 Model G1WY-2Y
 Filling range 10-100ml, 30-300ml,50-500ml,100-1000ml,300-3000ml, 1000-5000ml
 Filling material  liquid,oil,beverage,shampoo,perfume etc
 Driven  Electric and pneumatic
 Air compressor  1.5hp
 Applicable pressure  0.4-0.6mpa
 Working head  Double heads
 Nozzle size  4mm/8mm/12mm(can be customized)
 Packaging size  125 x 40 x30cm
 Gross weight  67kg
 Automatic grade  semi auto & automatic
 Machine material  stainless steel



Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 0

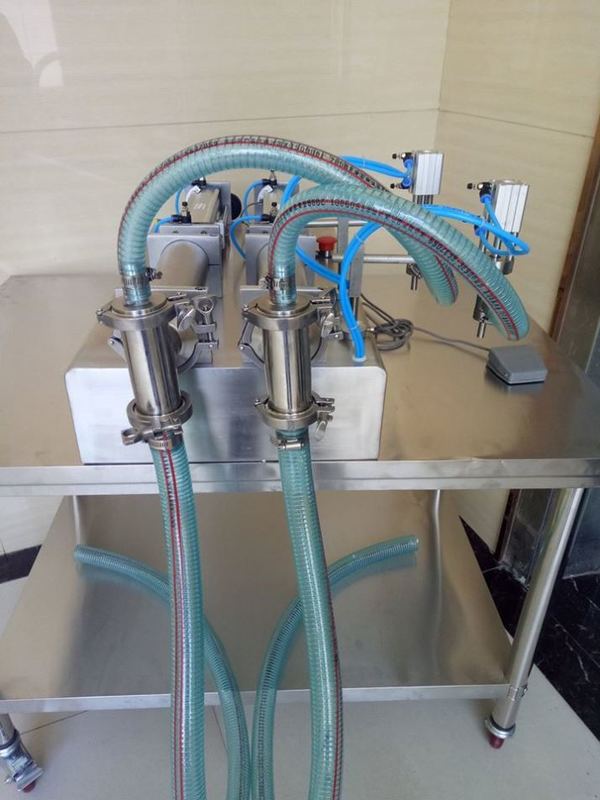

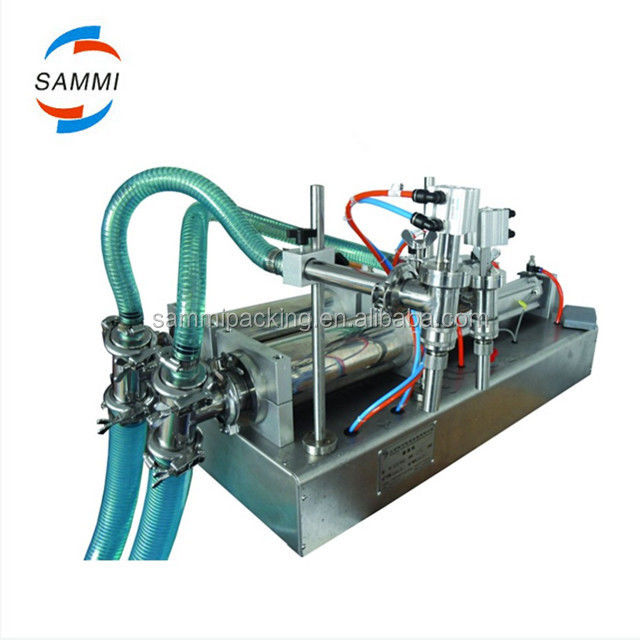

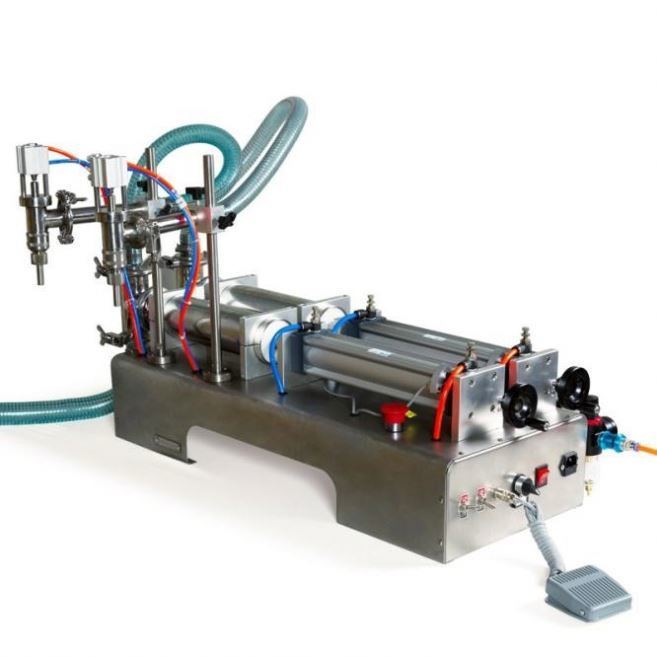

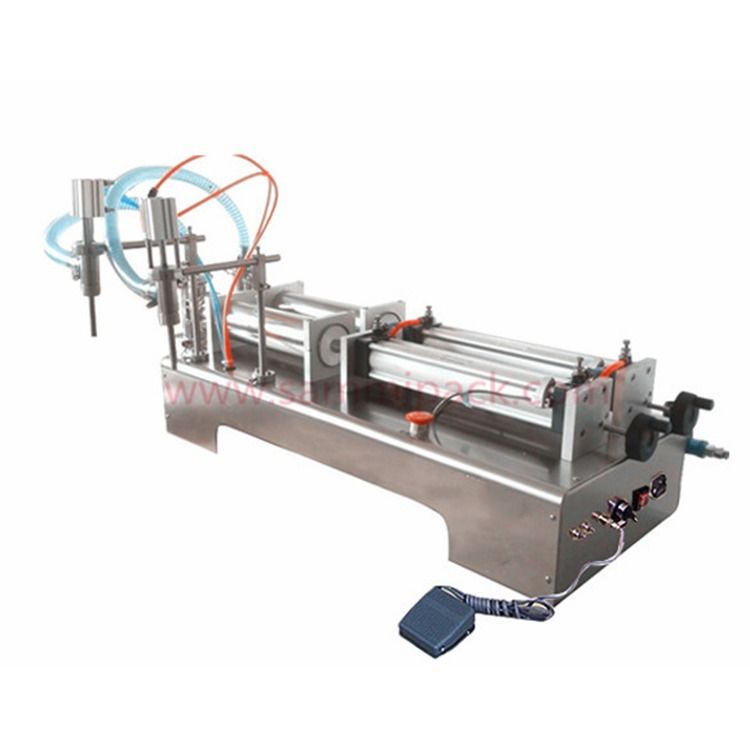

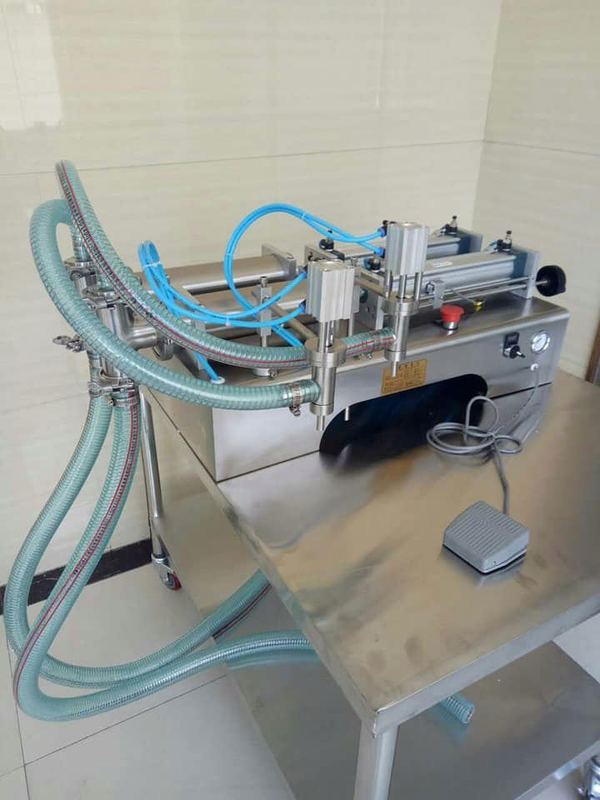

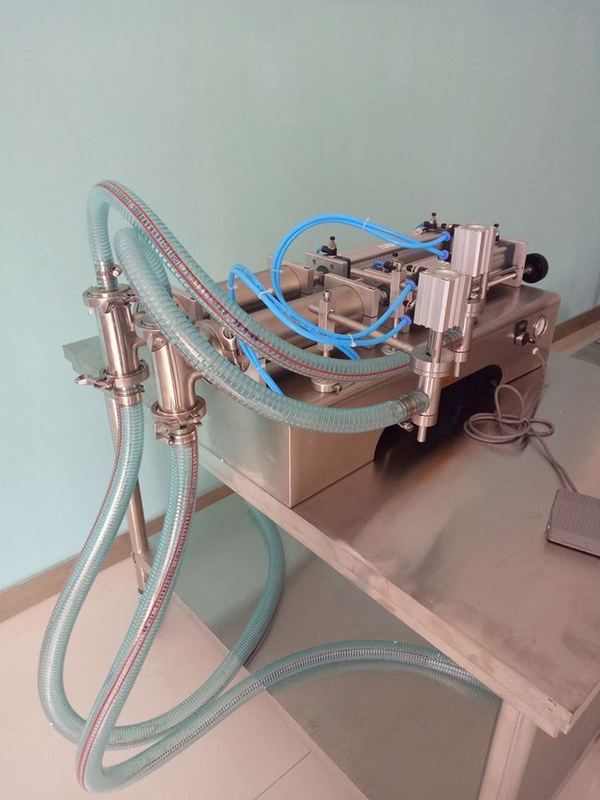

Machine photos



Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 2Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 4Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 6Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 8Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 10Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 12Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 14Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 16Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 18Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 20Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 22



Double Nozzles Pneumatic Liquid Filler Filling Machine for Filling Shampoo, Oil, Chemical G1WY-2Y-500 24
